XKAQ-00456 XKAQ-00473 XKAQ-00455 31Q8-11141 31Q8-10140 31Q8-10141 for Swing Reduction Gear Hyundai R300LC-9A R300LC-9S R305LC-7

  • XKAQ-00456 XKAQ-00473 XKAQ-00455 31Q8-11141 31Q8-10140 31Q8-10141 for Swing Reduction Gear Hyundai R300LC-9A R300LC-9S R305LC-7
  • XKAQ-00456 XKAQ-00473 XKAQ-00455 31Q8-11141 31Q8-10140 31Q8-10141 for Swing Reduction Gear Hyundai R300LC-9A R300LC-9S R305LC-7
  • XKAQ-00456 XKAQ-00473 XKAQ-00455 31Q8-11141 31Q8-10140 31Q8-10141 for Swing Reduction Gear Hyundai R300LC-9A R300LC-9S R305LC-7
  • XKAQ-00456 XKAQ-00473 XKAQ-00455 31Q8-11141 31Q8-10140 31Q8-10141 for Swing Reduction Gear Hyundai R300LC-9A R300LC-9S R305LC-7
Place of Origin Made in china
Marca TCY
Model Number R305-9
Minimum Order Quantity 1
Prezzo 20-200
Packaging Details Standard export packing
Delivery Time 2-3/Negotiate
Payment Terms T/T,Alipay,Wechat ...etc.

Contattatemi per campioni e buoni.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Product Name Carrier assembly Part Number XKAQ-00456 XKAQ-00473 XKAQ-00455 31Q8-11141 31Q8-10140 31Q8-10141
Apply For R300LC-9A R300LC-9S R305LC-7 Weight 40KG/Set
MOQ 1Set Application Hyundai Excavator Swing Device
Condition New Type After Market
Marca TCY Delivery time Within 1-3 days after payment/negotiation
Lasciate un messaggio
Descrizione di prodotto

TCY XKAQ-00456 XKAQ-00473 XKAQ-00455 31Q8-11141 31Q8-10140 31Q8-10141 for Swing Reduction Gear Hyundai R300LC-9A R300LC-9S R305LC-7



Product details

Model R300LC-9A R300LC-9S R305LC-7
Part name Swing Carrier Assembly
Part Number XKAQ-00456 XKAQ-00473 XKAQ-00455 31Q8-11141 31Q8-10140 31Q8-10141
Quality High-Quality
MOQ 1PCS
Application Excavator Swing Drive
Processing Casting
Place of Origin zhejiang,China
Delivery Time 1-3 days Or negotiate
Note Other models can be consulted online

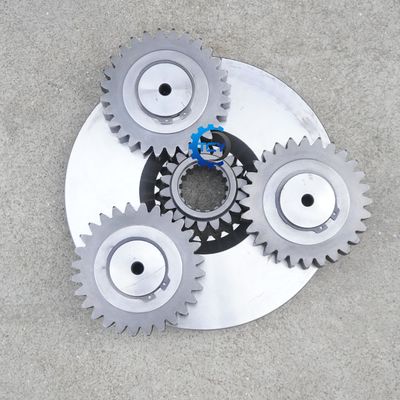

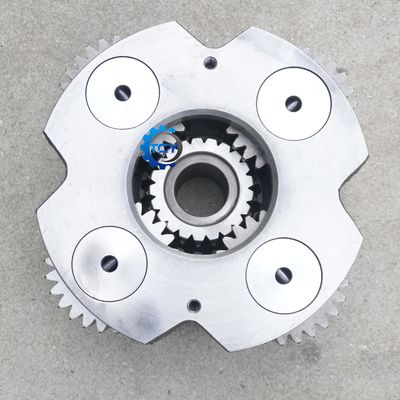

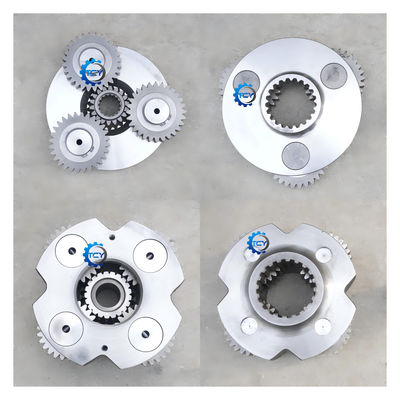

Product picture

 XKAQ-00456 XKAQ-00473 XKAQ-00455 31Q8-11141 31Q8-10140 31Q8-10141 for Swing Reduction Gear Hyundai R300LC-9A R300LC-9S R305LC-7 0



Pos. Part No Qty Parts name
*-2. 31Q8-10141 [1] SWING REDUCTION GEAR
*-2. 31Q8-10142 [1] SWING REDUCTION GEAR
*-2. 31Q8-10142AR [1] SWING REDUCTION GEAR
1. XKAQ-00451 [1] CASING
2. XKAQ-00760 [1] SHAFT-DRIVE
3. XKAQ-00146 [1] BEARING-ROLLER
4. XKAQ-00149 [1] SEAL-OIL
5. XKAQ-00027 [1] BEARING-ROLLER
6. XKAQ-00467 [1] CARRIER ASSY 2
7. XKAQ-00468 [1] CARRIER 2
8. XKAQ-00469 [4] GEAR-PLANET 2
9. XKAQ-00470 [4] PIN ASSY 2
N10. XKAQ-00471 [1] PIN 2
N11. XKAQ-00472 [1] BUSHING 2
12. XKAQ-00435 [8] WASHER-THRUST
13. XKAQ-00050 [4] PIN-SPRING
14. XKAQ-00473 [1] CARRIER ASSY 1
15. XKAQ-00453 [1] CARRIER 1
16. XKAQ-00454 [3] GEAR-PLANET 1
17. XKAQ-00440 [3] PIN ASSY 1
N18. XKAQ-00441 [3] PIN 1
N19. XKAQ-00079 [3] BUSHING 1
20. XKAQ-00417 [3] PLATE 1-SIDE
21. XKAQ-00416 [3] PLATE 2-SIDE
22. XKAQ-00041 [3] RING-STOP
23. XKAQ-00048 [3] PIN-SPRING
24. XKAQ-00455 [1] GEAR 2-SUN
25. XKAQ-00456 [1] GEAR 1-SUN
26. XKAQ-00457 [1] RING-GEAR
27. XKAQ-00466 [12] BOLT-SOCKET
28. XKAQ-00626 [1] COVER PLATE
29. XKAQ-00064 [8] BOLT-HEX
30. XKAQ-00627 [1] SPACER
31. XKAQ-00628 [1] RING-SPACER
32. XKAQ-00447 [1] PLATE 3-THRUST
33. XKAQ-00629 [1] GEAR-PINION
34. XKAQ-00761 [1] PLATE-LOCK
35. XKAQ-00756 [4] BOLT-HEX
37. XKAQ-00049 [1] PLUG
38. XKAQ-00066 [2] PLUG
39. XKAQ-00035 [1] PIPE-GAUGE
40. XKAQ-00034 [1] BAR-GAUGE
40. XKAQ-00985 [1] BAR-GAUGE
41. XKAQ-00072 [2] PIN-KNOCK
42. XKAQ-00143 [1] POST-AIR BREATHER
42. XKAQ-00800 [1] AIR BREATHER ASSY
N43. XKAQ-00631 [1] BUSHING 2



 About us

XKAQ-00456 XKAQ-00473 XKAQ-00455 31Q8-11141 31Q8-10140 31Q8-10141 for Swing Reduction Gear Hyundai R300LC-9A R300LC-9S R305LC-7 1

XKAQ-00456 XKAQ-00473 XKAQ-00455 31Q8-11141 31Q8-10140 31Q8-10141 for Swing Reduction Gear Hyundai R300LC-9A R300LC-9S R305LC-7 2

Package

XKAQ-00456 XKAQ-00473 XKAQ-00455 31Q8-11141 31Q8-10140 31Q8-10141 for Swing Reduction Gear Hyundai R300LC-9A R300LC-9S R305LC-7 3





XKAQ-00456 XKAQ-00473 XKAQ-00455 31Q8-11141 31Q8-10140 31Q8-10141 for Swing Reduction Gear Hyundai R300LC-9A R300LC-9S R305LC-7 4


FAQ



Q:What is your sample policy?

A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.



Q:What are your main products?

A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.

If you need other excavator accessories, we can also supply according to your.



Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.



Q:How do I order?

A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be         prepared after receiving the payment. The preparation time depends on the content of the order.



Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
