KTC11150 GEAR REDUCTION FOR CX460 CX470B

  • KTC11150 GEAR REDUCTION FOR CX460 CX470B
  • KTC11150 GEAR REDUCTION FOR CX460 CX470B
  • KTC11150 GEAR REDUCTION FOR CX460 CX470B
Luogo di origine Made in China
Marca TCY
Numero di modello CX460 CX470B CX490 SH490
Quantità di ordine minimo 1
Imballaggi particolari cassa di legno
Tempi di consegna 2-3/Negoziare
Termini di pagamento T/T, Alipay, WeChat... ecc., Western Union, MoneyGram, D/P
Dettagli
Modello CX460 CX470B CX490 SH490 Nome del prodotto Ingranaggio di riduzione dell'oscillazione
Parte n. KTC0185 KTC10240R KTC11150 MOQ 1 pz
Peso 450 kg cassa di legno 55*55*60
Condizione Nuovo Marca TCY
Lasciate un messaggio
Descrizione di prodotto

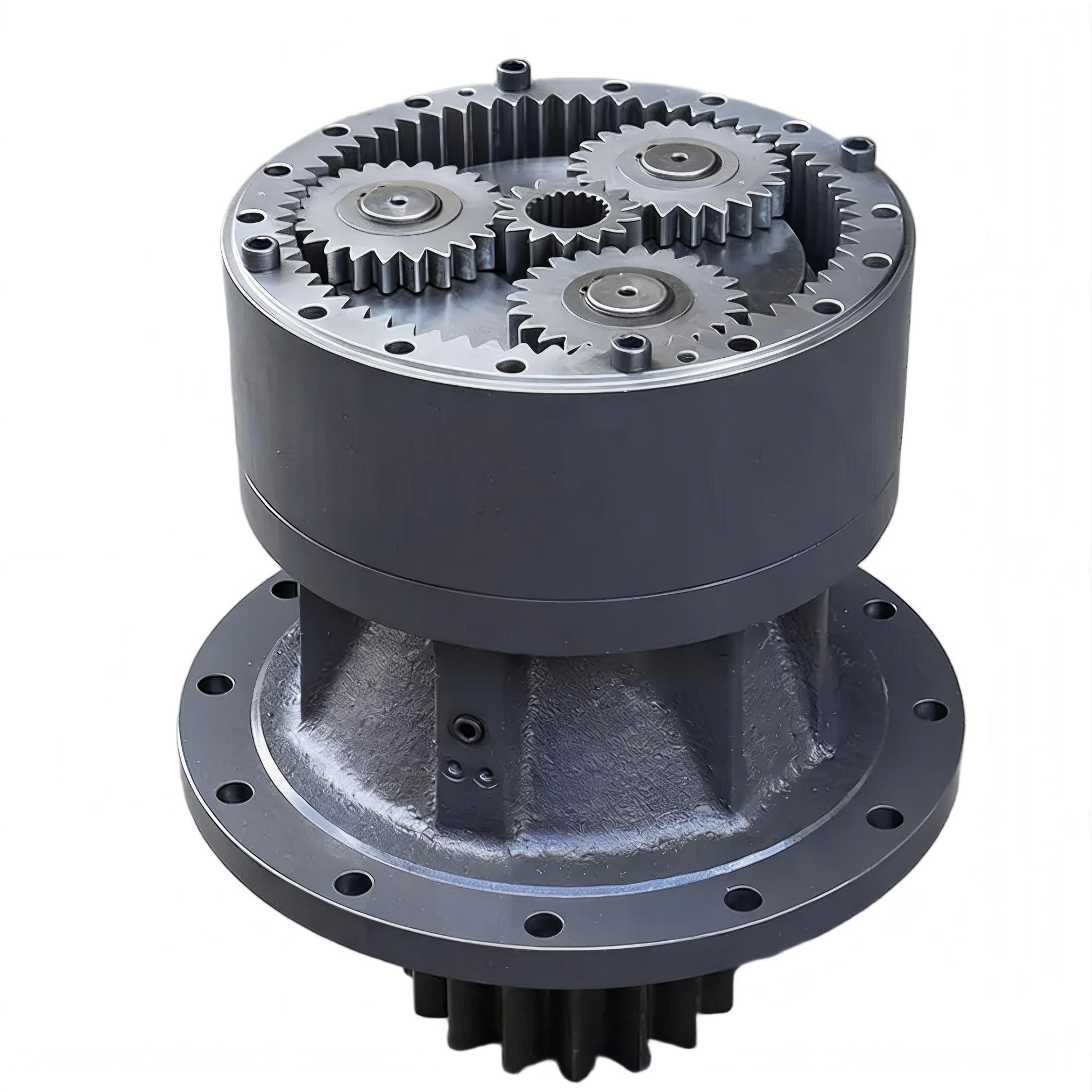

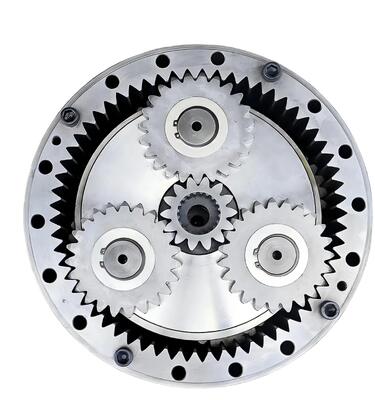

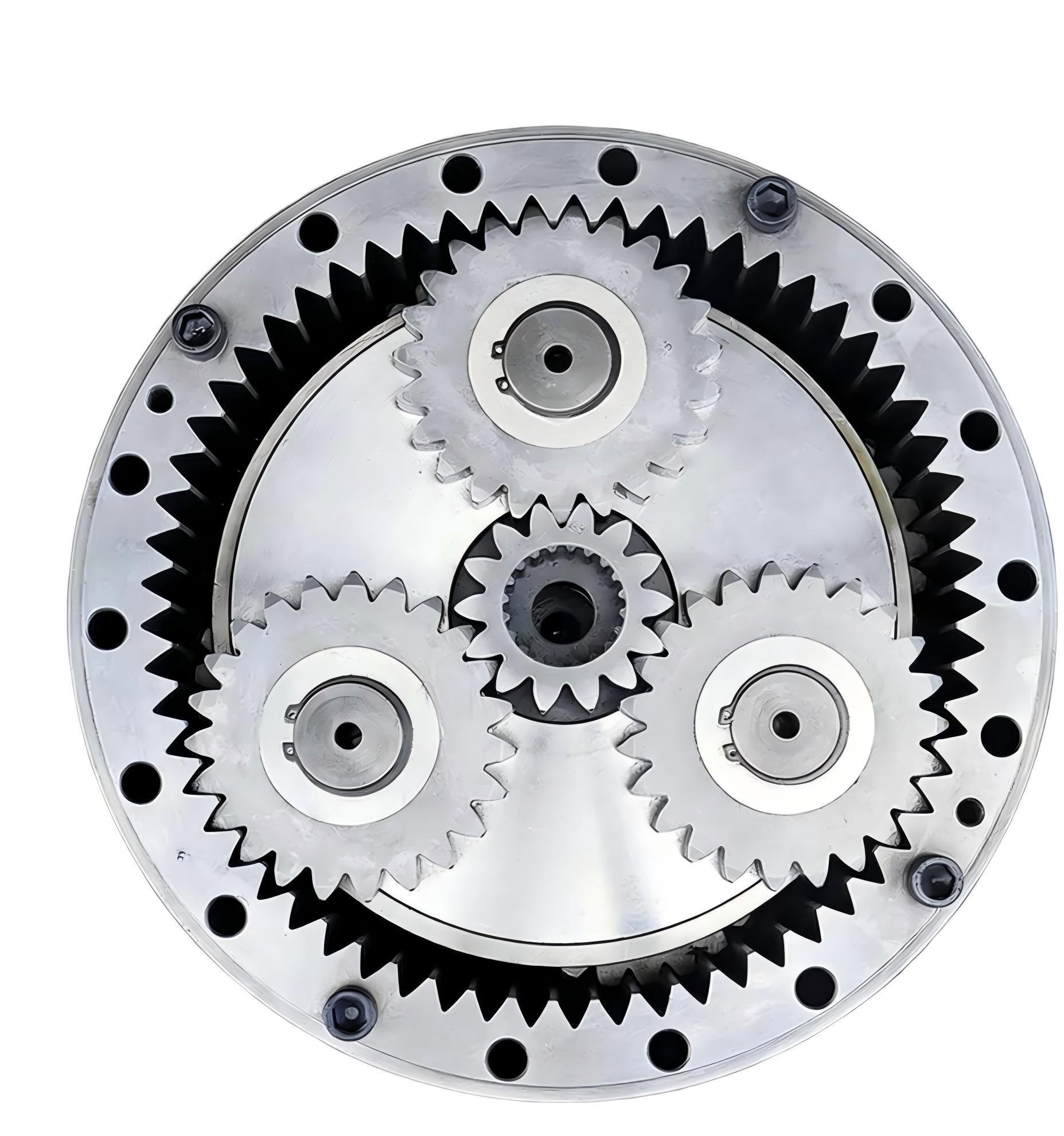

KTC0185 KTC10240R KTC11150 GEAR REDUCTION FOR CX460 CX470B SWING DEVICE


Model: CX330 CX350 Part name:Swing Reduction Gear
Part NO.:KSC0253 KSC0247 KSC10170 MOQ:1PCS
Packing:Wooden case Place of Origin:China
Aftersale service provided:Online support  Apply To:CASE Excavator
Delivery Time: 1-3 days Or negotiate Note: Other models can be consulted online



Product

KTC11150 GEAR REDUCTION FOR CX460 CX470B 0

Pos Part No Qty Parts name
3 KTC0185 [1] GEAR REDUCTION UNIT
3 KTC10240R [1] REMAN-REDUCTION UNIT
3 KTC10240C [1] CORE-REDUCTION UNIT
4 KTC0160 [1] SUN GEAR
5 NSS [1] NOT SOLD SEPARAT
6 KTC0182 [1] SHAFT, PLANETARY CAR
7 KTC0161 [1] SUN GEAR
8 KTC0166 [1] RING GEAR
9 KTC0183 [1] PINION CARRIER
9.5 KTC0188 [1] PLANETARY REDUCER
10 KTC0155 [4] PIN
11 KTC0170 [1] HOUSING
12 KTC0150 [1] BEARING,130mm ID x 210mm OD x 64mm W
13 150824A1 [1] PLUG
14 158352A1 [2] PLUG
15 KTC0158 [1] RETAINING WIRE
16 KTC0151 [1] SPACER
17 KTC0159 [1] RETAINING WIRE
18 KTC0152 [1] BEARING COVER
19 KTC0154 [1] SPACER
20 150252A1 [1] BEARING,140 mm ID x 300 mm OD x 102 mm
22 KTC0153 [1] OIL SEAL
23 KTC0184 [1] SHAFT ASSY.
24 NSS [4] NOT SOLD SEPARAT
25 NSS [7] NOT SOLD SEPARAT
26 NSS [4] NOT SOLD SEPARAT
27 NSS [4] NOT SOLD SEPARAT
28 NSS [3] NOT SOLD SEPARAT
29 150237A1 [18] BOLT,Hex Skt
30 NSS [3] NOT SOLD SEPARAT
