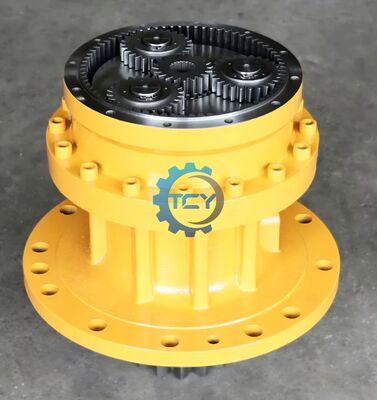

378-9517 SWING REDUCTION GEAR for Cat320D2 323

  • 378-9517 SWING REDUCTION GEAR for Cat320D2 323
  • 378-9517 SWING REDUCTION GEAR for Cat320D2 323
  • 378-9517 SWING REDUCTION GEAR for Cat320D2 323
  • 378-9517 SWING REDUCTION GEAR for Cat320D2 323
Luogo di origine Made in China
Marca TCY
Numero di modello CAT323D2L320D2
Quantità di ordine minimo 1
Imballaggi particolari cassa di legno
Tempi di consegna 2-3/Negoziare
Termini di pagamento T/T, Alipay, WeChat... ecc., Western Union, MoneyGram, D/P
Dettagli
Parte n. 378-9517 3789517 488-3075 4883075 Nome del prodotto Ingranaggio di riduzione dell'oscillazione
Modello CAT323D2 L320D2 asse del pignone 14T/34T
MOQ 1 pz peso 320 kg
cassa di legno 55*55*60 Condizione Nuovo
Marca TCY
Lasciate un messaggio
Descrizione di prodotto

378-9517 3789517 488-3075 4883075 SWING REDUCTION GEAR for CAT320 323F OEM 320F L 320D L 320E L 320D2 GC 323 323E LN 320D2 FM 320D 320E 320D2 L 320E LRR 323F L 323E L 538 323D2 L 320D2 323F LN 320D3 323D2 323F 320 GC 323E SA 320E LN 320E RR

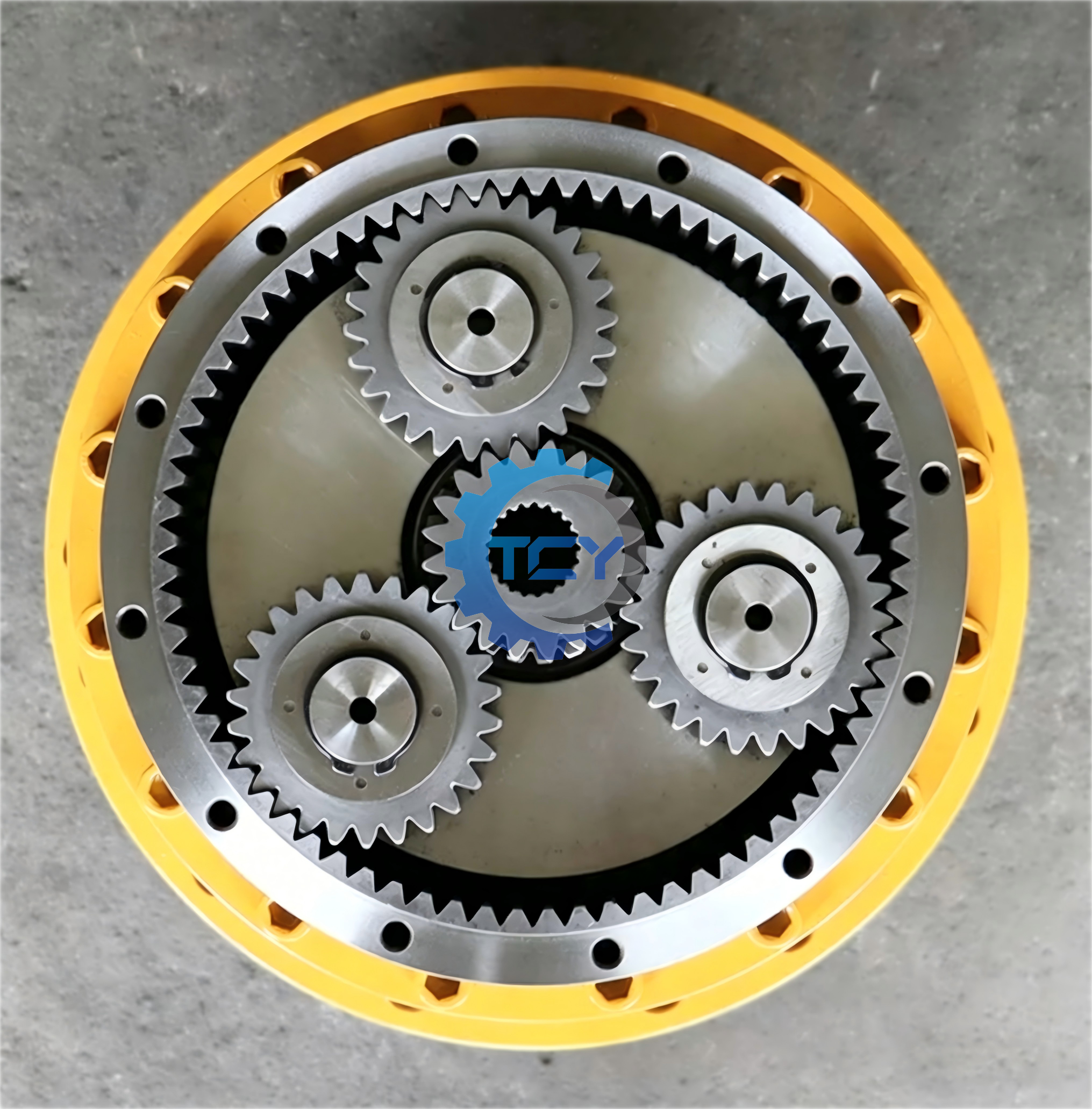

This excavator swing reduction gearbox adopts high-strength planetary gear structure.
It features strong impact resistance, stable power transmission and excellent durability. Reinforced housing and multi-layer sealing effectively prevent dust and water intrusion.
Precision-processed gears deliver high efficiency, smooth slewing performance and extended service life, ideal for long-term heavy-duty construction scenarios.





Perfect Fit & Easy Maintenance: Direct interchangeability with major OEM models (Komatsu, Hitachi, Cat, Doosan, Hyundai, Sany, etc.).



Wide Application: Ideal for excavators, loaders, cranes, and rotary drilling rigs—performing reliably in construction, mining, quarrying, and infrastructure projects.

378-9517 SWING REDUCTION GEAR for Cat320D2 323 0


Model:  CAT 323D2 L 320D2 Part name:Swing Reduction Gear
Part NO.:378-9517 3789517 488-3075 4883075 MOQ:1PCS
Packing:Wooden case Place of Origin:China
Aftersale service provided:Online support  Apply To:CAT Excavator
Delivery Time: 1-3 days Or negotiate Note: Other models can be consulted online

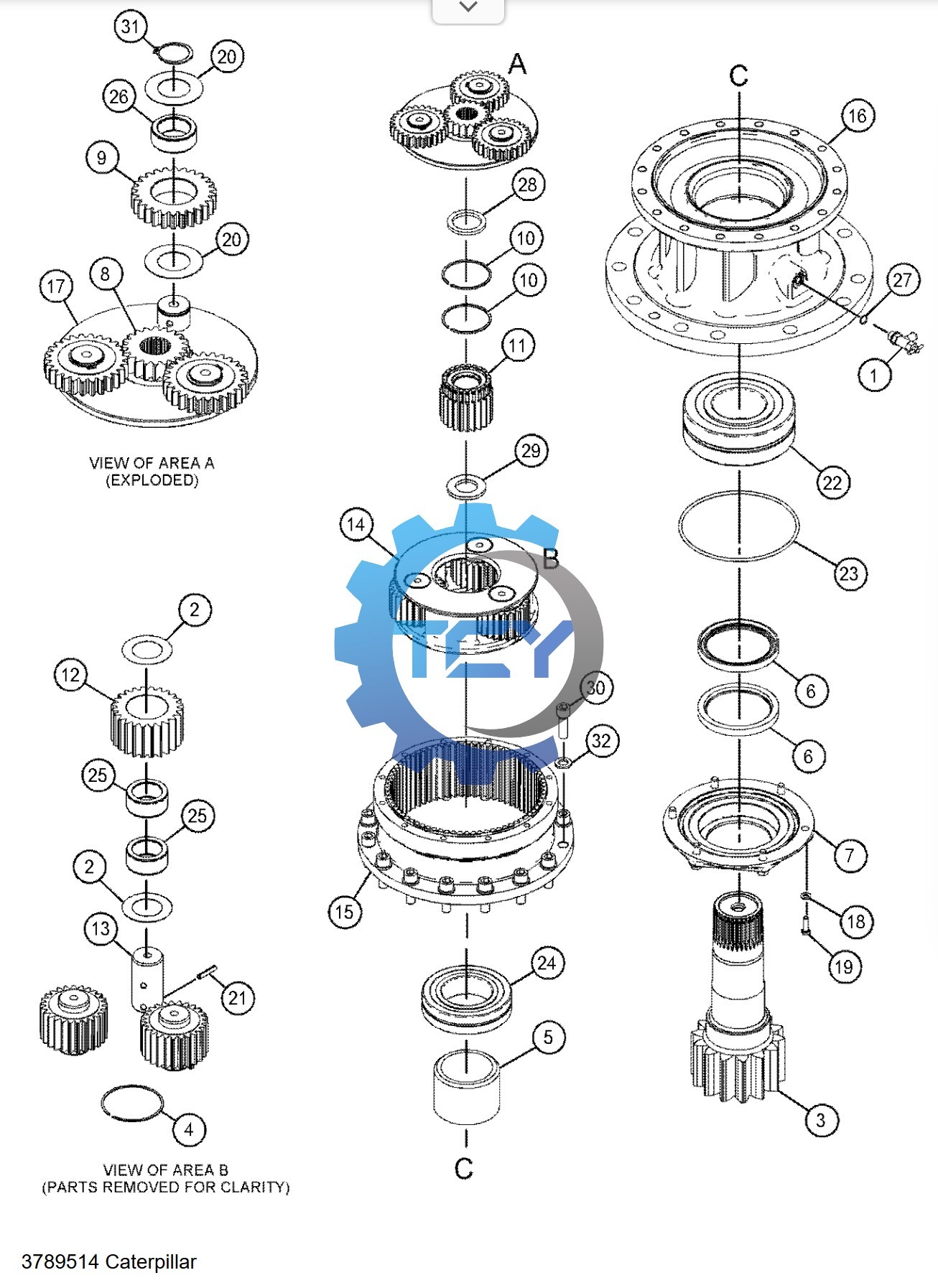

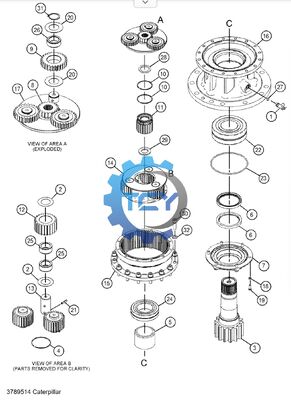

NO. PART NO. QTY PART NAME
1 6V-7238 [1] VALVE-SHUTOFF
2 094-0611 [6] WASHER (47.3X76X1-MM THK)
3 148-4636 [1] SHAFT-PINION
4 148-4640 [1] RING-RETAINING
5 171-9383 [1] SPACER
6 199-4561 [2] SEAL-LIP TYPE
7 227-6228 [1] CAGE
8 367-8364 [1] GEAR-SUN (20-TEETH)
9 367-8365 [3] GEAR-PLANETARY (26-TEETH)
10 367-8367 [2] RING-RETAINING
11 367-8368 [1] GEAR-SUN (23-TEETH)
12 367-8369 [3] GEAR-PLANETARY (25-TEETH)
13 378-9513 [3] SHAFT
14 378-9514 [1] CARRIER-PLANETARY
15 378-9515 [1] GEAR-RING (73-TEETH)
16 378-9516 [1] HOUSING
17 378-9609 [1] CARRIER AS
18 451-2182 [6] WASHER-HARD (13.5X25.5X3-MM THK)
19 453-3447 M [6] BOLT (M12X1.75X40-MM)
20 094-0584 [6] WASHER (40.3X72X1-MM THK)
21 509-6676 [3] PIN-SPRING
22 095-1022 [1] BEARING-ROLLER
23 148-4642 [1] SEAL-O-RING
24 148-4643 [1] BEARING
25 296-6268 [6] BEARING AS-ROLLER
26 346-5215 [3] BEARING AS
27 3K-0360 [1] SEAL-O-RING
28 7I-7623 [1] SPACER (52X69.5X6-MM THK)
29 7Y-1434 [1] SPACER (40X69.5X6-MM THK)
30 8T-0348 M [16] BOLT-SOCKET HEAD (M16X2X50-MM)
31 8T-4240 [3] RING-RETAINING
32 9X-8268 [16] WASHER (17.5X30X3.5-MM THK)
