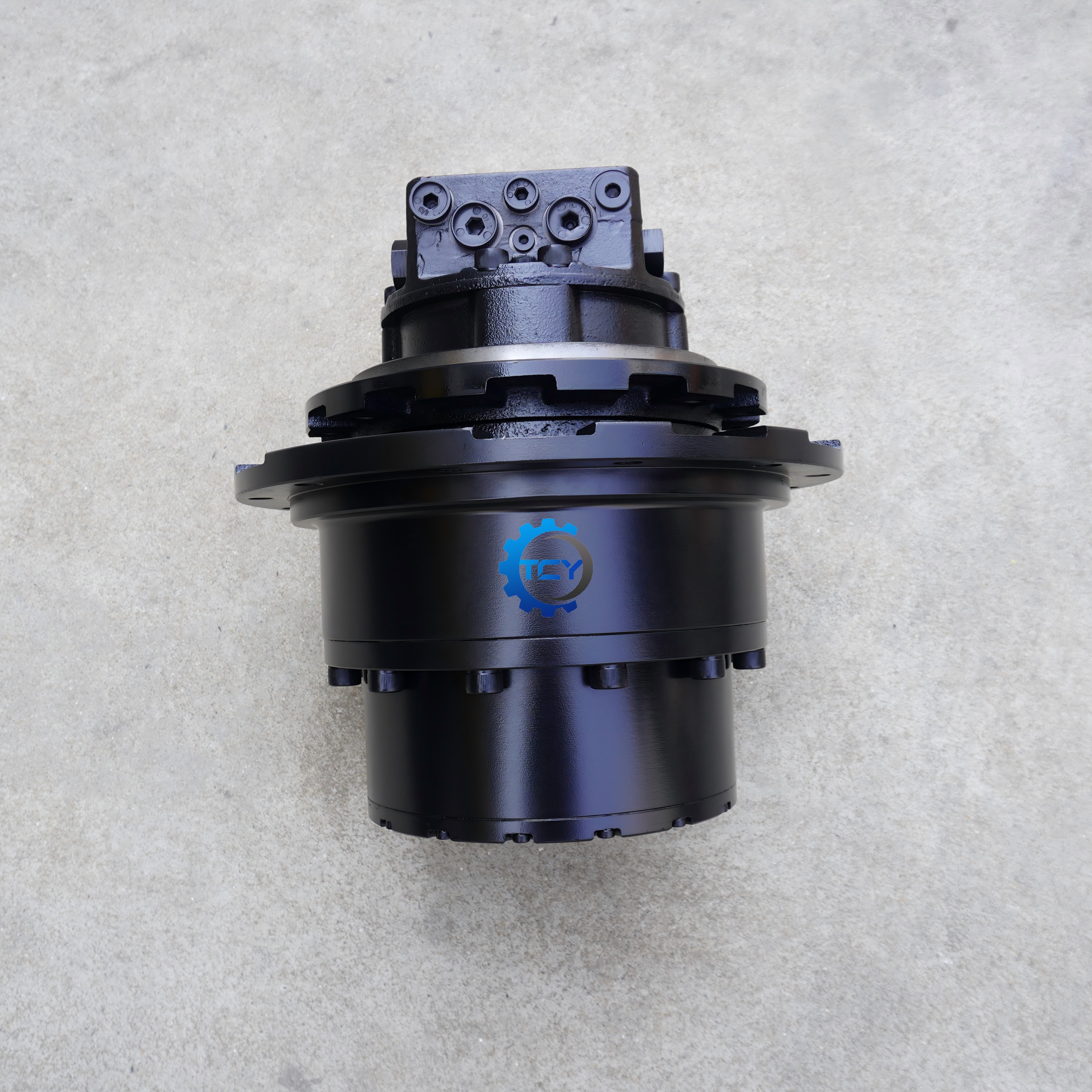

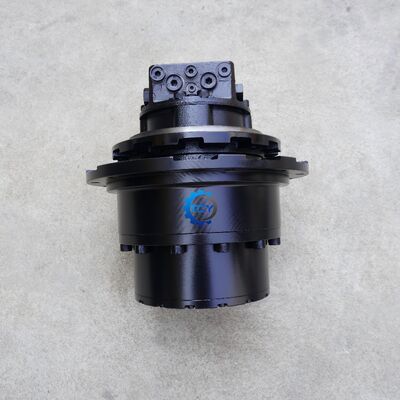

9224241 Travel Motor with gearbox FOR ZX75UR TRAVEL DEVICE HITACHI

Marca TCY
Numero di modello ZX70 ZX75UR ZX75URT
Quantità di ordine minimo 1
Prezzo 1000-3000
Imballaggi particolari cassa di legno
Tempi di consegna 2-3/Negoziare
Termini di pagamento T/T, Alipay, WeChat... ecc.,
Dettagli
Numero di parte 9224241 9224123 Nome della parte Assemblea motore di viaggio
Richiedi ZX70 ZX75UR ZX75URT ZX75US-A ZX75UST ZX80LCK ZX8OSB-HCME ZX85US-HCME Qualità Alto
Condizione Nuovo Dimensione della scatola di legno 55*55*62
peso 130kg MOQ 1
Applicazione trasmissione finale dell'escavatore
Lasciate un messaggio
Descrizione di prodotto

9224241 9224123 TRAVEL MOTOR WITH GEARBOX FOR ZX75UR TRAVEL DEVICE HITACHI



• High torque & stable performance
Powerful output ensures smooth and efficient travel even under heavy load and tough working conditions.



• Premium material & long service life
High-strength gears and bearings with heat treatment, wear-resistant and durable for heavy-duty use.



• Advanced sealing system
Reliable multi-layer seals prevent oil leakage, dust and water intrusion, extending component life.



• Perfect OEM replacement
Direct interchangeable with original parts, easy installation, no modification needed.



• Low noise & low maintenance
Stable operation, reduced downtime, cost-effective for construction machinery.



• Wide compatibility
Suitable for various brands and models of excavators, reliable in mining, construction and earthmoving sites.



9224241 Travel Motor with gearbox FOR ZX75UR TRAVEL DEVICE HITACHI 0

Model: ZX70 ZX75UR ZX75URT ZX75US-A ZX75UST ZX80LCK ZX8OSB-HCME ZX85US-HCME

Part name:Travel Motor with gearbox

Part NO:9224241 9224123

MOQ:1PCS

Packing:Wooden case

Place of Origin:Made in China

Aftersale service provided:Online support

Apply To:Excavator Final Device

Delivery Time: 1-3 days Or negotiate

Note: Other models can be consulted online

Pos. Part No Qty Parts name
  9224241 [2] TRAVEL DEVICE ASS'Y
0 9207861 [1] MOTOR;OIL
0 9207891 [1] MOTOR;OIL
2 4468674 [2] BRG.;BOLL
3 4082631 [1] SEAL;GROUP
4 4468675 [1] DRUM
6 J931635 [12] BOLT
8 4468676 [1] GEAR;RING
9 M341440 [12] BOLT;SOCKET
10 1024217 [1] SPROCKET
12 4468678 [1] COVER
13 4392320 [1] RING
14 4245797 [3] PLUG
15 4468679 [1] PIN
16 4407802 [1] O-RING
19 4400403 [1] CARRIER
20 4600404 [1] SHAFT;PROP.
21 4600405 [3] GEAR;PLANETARY
22 4600407 [3] BRG.;NEEDLE
23 4392322 [6] PLATE;THRUST
24 4600406 [3] PIN
25 4116305 [3] PIN;SPRING
26 4600408 [1] PLATE;THRUST
29 4468684 [1] CARRIER
30 4468685 [1] GEAR;SUN
31 4468686 [3] GEAR;PLANETARY
32 4468687 [3] BRG.;NEEDLE
33 4392326 [6] PLATE;THRUST
34 4468688 [3] PIN
35 4105691 [3] PIN;SPRING
37 3080619 [1] NUT
38 J401032 [1] PIN;KNOCK
40 3095427 [1] NAME-PLATE
41 M492564 [2] SCREW;DRIVE

Exhibition

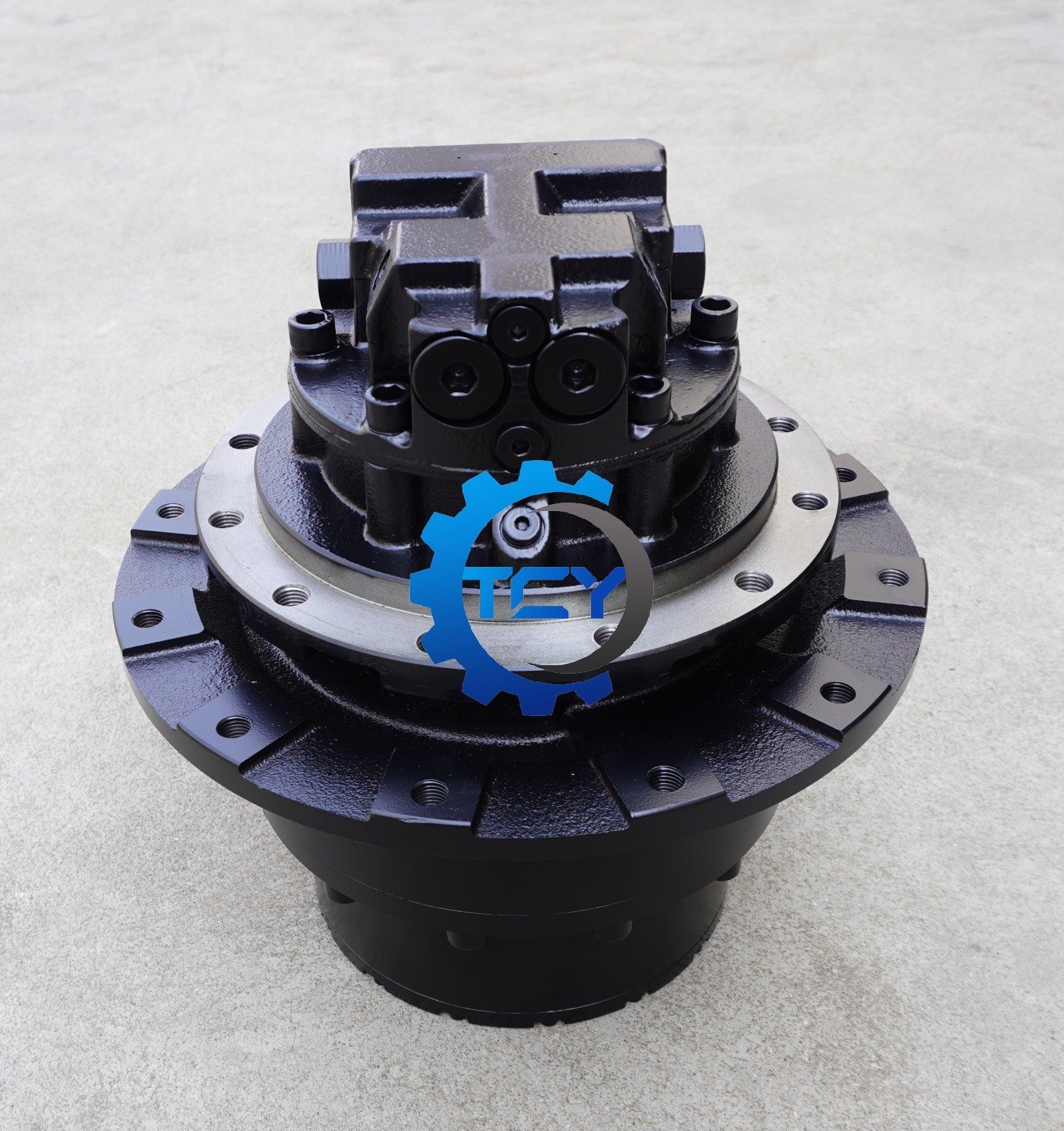

9224241 Travel Motor with gearbox FOR ZX75UR TRAVEL DEVICE HITACHI 1



Shipping

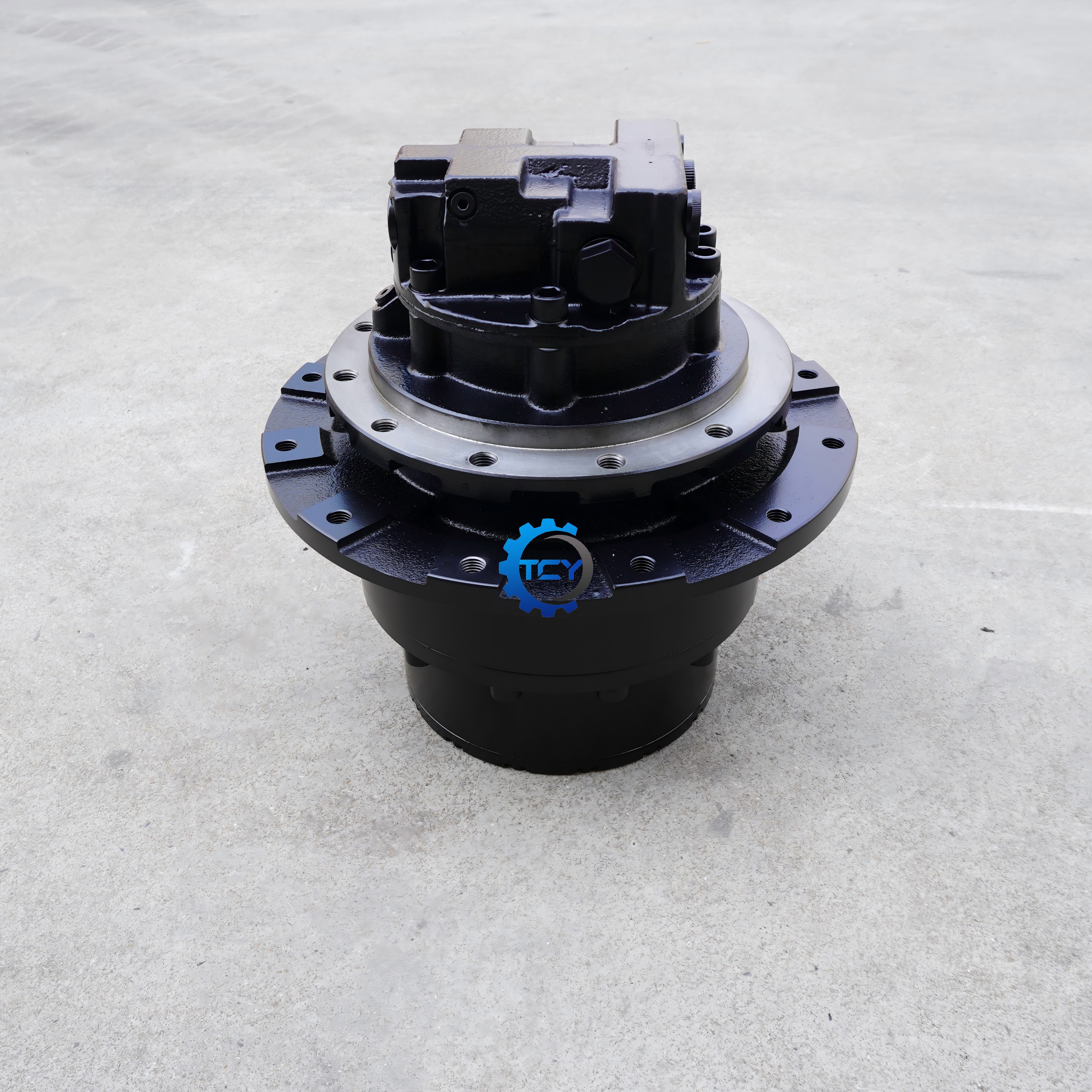

9224241 Travel Motor with gearbox FOR ZX75UR TRAVEL DEVICE HITACHI 2



9224241 Travel Motor with gearbox FOR ZX75UR TRAVEL DEVICE HITACHI 3



FAQ




Q:What is your sample policy?

A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.



Q:What are your main products?

A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.

If you need other excavator accessories, we can also supply according to your.



Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.



Q:How do I order?

A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.



Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
