39Q6-42100 39Q6-42100 31Q6-40011 TRAVEL REDUCTION GEAR HX220L R210LC7A R210LC9 R210LC9BC R210LC9BH R210NLC9 R215LC7 R220LC9A R220NLC9A R235LCR9 RB220LC9S RD210-7 RD210-7V RD220-7 RD220LC9

Luogo di origine MADE IN CHINA
Marca TCY
Numero di modello HX220L R210LC7A R210LC9 R210LC9BC R210LC9BH R210NLC9 R215LC7 R220LC9A R220NLC9A R235LCR9 RB220LC9S R
Quantità di ordine minimo 1
Prezzo 500-3000
Imballaggi particolari cassa di legno
Tempi di consegna 2-3/Negoziare
Termini di pagamento T/T, Alipay, WeChat... ecc.,
Dettagli
Numero di parte 39Q6-42100 39Q6-42100 31Q6-40011 Nome della parte Dispositivo di riduzione del movimento Assy
Richiedi HX220L R210LC7A R210LC9 R210LC9BC R210LC9BH R210NLC9 R215LC7 R220LC9A R220NLC9A R235LCR9 RB220LC9S R Dimensione della scatola di legno 52*52*57
Peso 257 kg Condizione Nuovo
MOQ 1 Applicazione Trasmissione finale dell'escavatore
Lasciate un messaggio
Descrizione di prodotto

39Q6-42100 39Q6-42100 31Q6-40011 TRAVEL REDUCTION GEAR HX220L R210LC7A R210LC9 R210LC9BC R210LC9BH R210NLC9 R215LC7 R220LC9A R220NLC9A R235LCR9 RB220LC9S RD210-7 RD210-7V RD220-7 RD220LC9

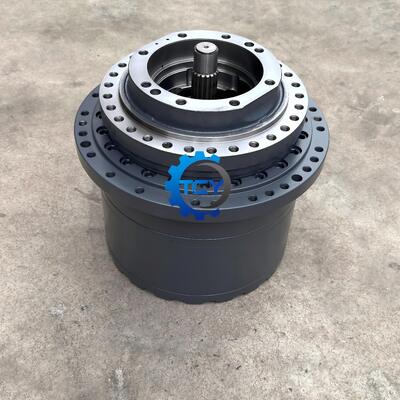

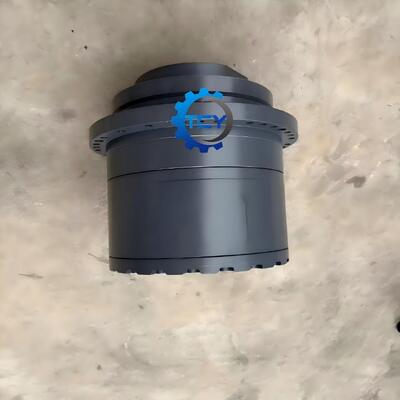

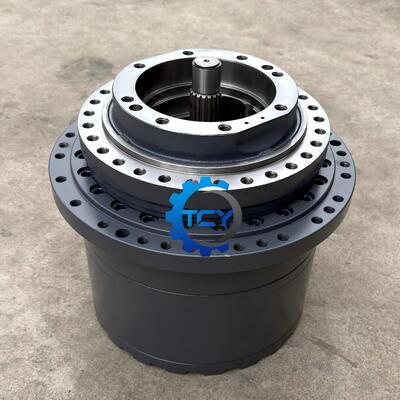

Brand-new aftermarket travel reduction gearbox for excavators; manufactured as a 1:1 replica with standard dimensions, wear-resistant gears, and low-noise operation.



Model: HX220L R210LC7A R210LC9 R210LC9BC R210LC9BH R210NLC9 R215LC7 R220LC9A R220NLC9A R235LCR9 RB220LC9S RD210-7 RD210-7V RD220-7 RD220LC9

Part name:TRAVEL REDUCTION GEAR ASSY

Part NO:39Q6-42100 39Q6-42100 31Q6-40011

MOQ:1PCS

Packing:Wooden case

Place of Origin:Made in China

Aftersale service provided:Online support

Apply To:Excavator Final Device

Delivery Time: 1-3 days Or negotiate

Note: Other models can be consulted online



39Q6-42100 39Q6-42100 31Q6-40011 TRAVEL REDUCTION GEAR HX220L R210LC7A R210LC9 R210LC9BC R210LC9BH R210NLC9 R215LC7  R220LC9A  R220NLC9A  R235LCR9 RB220LC9S RD210-7 RD210-7V RD220-7 RD220LC9 0



Pos. Part No Qty Parts name
*. 39K6-40100 [1] TRAVEL MOTOR ASSY
*. 39K6-40101 [1] TRAVEL MOTOR ASSY
*. 38K6-40100 [1] TRAVEL MOTOR ASSY
*. 38K6-40101 [1] TRAVEL MOTOR ASSY
*-2. 39Q6-42100 [1] TRAVEL REDUCTION GEAR
*-2. 39Q6-42101 [1] TRAVEL REDUCTION GEAR
1 39Q6-42110 [1] GEAR-RING
2 39Q6-42120 [2] BEARING-ANG.BALL
3 39Q6-42130 [2] SEAL ASSY-FLOATING
4 39Q6-42140 [1] RING-NUT
5 39Q6-42150 [1] PLATE-LOCK
6 S017-120166 [4] BOLT-HEX
7 39Q6-42160 [1] HOUSING
8 S129-070206 [20] BOLT-SOCKET,UNIFIED
9 39Q6-42170 [1] COUPLING
NK10. 39Q6-42190 [1] CARRIER 2
NK11. 39Q6-42200 [4] GEAR-PLANATARY 2
NK12. 39Q6-42210 [4] BEARING-NEEDLE 2
NK13. 39Q6-42220 [8] WASHER-THRUST 2
NK14. 39Q6-42230 [4] PIN-CARRIER 2
NK15. S472-800164 [4] PIN-SPRING
NK16. 39Q6-42350 [4] PIN-SOLID 2
17 39Q6-42240 [1] GEAR-SUN 2
NK18. 39Q6-42260 [1] CARRIER 1
NK19. 39Q6-42270 [3] GEAR-PLANETARY 1
NK20. 39Q6-42280 [3] BEARING-NEEDLE 1
NK21. 39Q6-42290 [6] WASHER-THRUST 1
NK22. 39Q6-42300 [3] PIN-CARRIER 1
NK23. S472-600364 [3] PIN-SPRING
24 39Q6-42310 [1] GEAR-SUN 1
27 S109-16110D [24] BOLT SOCKET
28 P220-110205 [3] PLUG-HEX
29 S602-035001 [1] RING-RETAINING
30 39Q6-42341 [1] NAME PLATE
30 39Q6-42342 [1] NAME PLATE
31 39Q6-41800 [2] RIVET
32 S631-024001 [3] O-RING
*-1. 38K6-41100 [1] TRAVEL MOTOR UNIT
K. 39Q6-42250 [1] CARRIER ASSY KIT 1
K. 39Q6-42180 [1] CARRIER ASSY KIT 2
*-1. 39K6-41100 [1] TRAVEL MOTOR UNIT
*-1. 38K6-41100 [1] TRAVEL MOTOR UNIT
K. 39Q6-42250 [1] CARRIER ASSY KIT 1
K. 39Q6-42180 [1] CARRIER ASSY KIT 2

39Q6-42100 39Q6-42100 31Q6-40011 TRAVEL REDUCTION GEAR HX220L R210LC7A R210LC9 R210LC9BC R210LC9BH R210NLC9 R215LC7  R220LC9A  R220NLC9A  R235LCR9 RB220LC9S RD210-7 RD210-7V RD220-7 RD220LC9 1

39Q6-42100 39Q6-42100 31Q6-40011 TRAVEL REDUCTION GEAR HX220L R210LC7A R210LC9 R210LC9BC R210LC9BH R210NLC9 R215LC7  R220LC9A  R220NLC9A  R235LCR9 RB220LC9S RD210-7 RD210-7V RD220-7 RD220LC9 2

Exhibition

39Q6-42100 39Q6-42100 31Q6-40011 TRAVEL REDUCTION GEAR HX220L R210LC7A R210LC9 R210LC9BC R210LC9BH R210NLC9 R215LC7  R220LC9A  R220NLC9A  R235LCR9 RB220LC9S RD210-7 RD210-7V RD220-7 RD220LC9 3

Packing

39Q6-42100 39Q6-42100 31Q6-40011 TRAVEL REDUCTION GEAR HX220L R210LC7A R210LC9 R210LC9BC R210LC9BH R210NLC9 R215LC7  R220LC9A  R220NLC9A  R235LCR9 RB220LC9S RD210-7 RD210-7V RD220-7 RD220LC9 4



FAQ

Q:What is your sample policy?

A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.



Q:What are your main products?

A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.

If you need other excavator accessories, we can also supply according to your.



Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.



Q:How do I order?

A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.



Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
